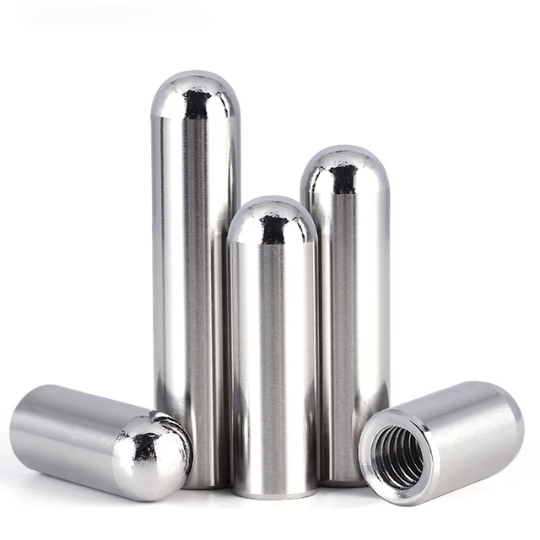

Threaded Dowel Pins at a Glance
| Feature | Threaded Dowel Pins |
| Product Type | Threaded Dowel Pin |
| Primary Function | Precision positioning and alignment |
| Thread Function | Installation, retention, or removal |
| Primary Advantage | Threaded access for installation, retention, or controlled removal |
| Locating Fit | Selected according to locating diameter, mating hole, and required positioning |
| Typical Applications | Molds, dies, precision tooling, industrial assemblies |
| Manufacturing | Precision machining and grinding per specification |
| Dimensions | Standard and custom |
| Thread Type | Metric or inch, per drawing |
| Tolerance | Per drawing or specification |
| Customization | Diameter, length, thread, tolerance, material, configuration |
What Are Threaded Dowel Pins?
A threaded dowel pin is a precision cylindrical locating component with a threaded section added for practical assembly. The ground cylindrical body does the positioning—the thread handles installation, retention, or removal.
The thread does not improve positioning accuracy. Precision comes from the cylindrical locating surface and its fit with the mating hole.

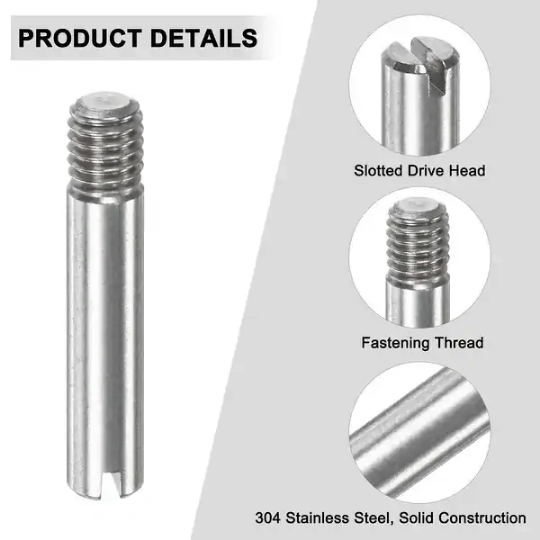

What Are the Main Parts of a Threaded Dowel Pin?
| Feature | Function |
| Locating Diameter | Provides the precision locating surface |
| Locating Length | Determines the effective engagement with the mating hole |
| Threaded Section | Supports installation, retention, or removal |
| Overall Length | Determines total engagement and installation space |
| End Configuration | Defined according to the assembly and removal method |
The Threaded Dowel Pins Design Considerations
Must match the hole fit and positioning tolerance required by the assembly.
Should match the intended installation, retention, or extraction method. Thread size and engagement length should be selected according to the installation, retention, or extraction method and the expected axial load.
Overall length and locating length should provide sufficient engagement without interfering with adjacent components.
Diameter, length, roundness, and other dimensional requirements defined by the assembly’s positioning needs.
Selected according to wear, load, operating conditions, and required service life.
Final configuration should account for whether the pin will be pressed, threaded, retained, or regularly removed.
For threaded dowel pins, the locating diameter and mating hole still determine the positioning fit. Depending on the assembly requirements, the locating section may use a press fit, transition fit, or slip fit.

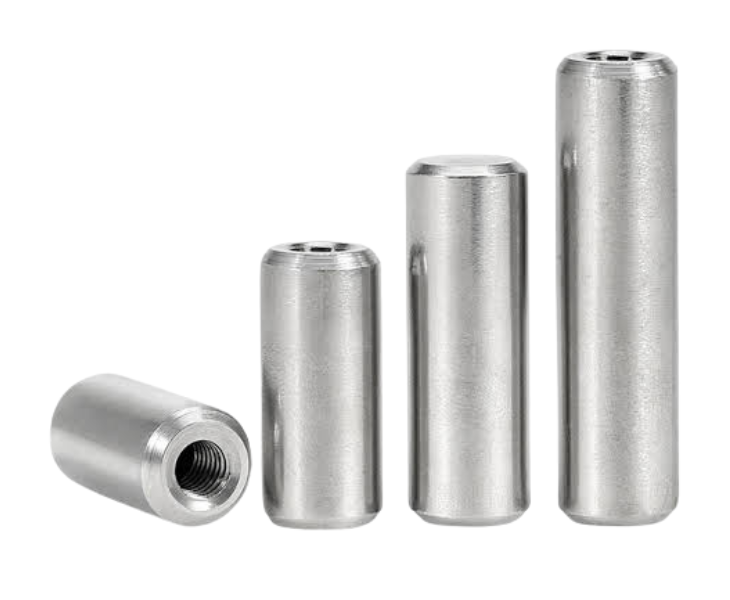

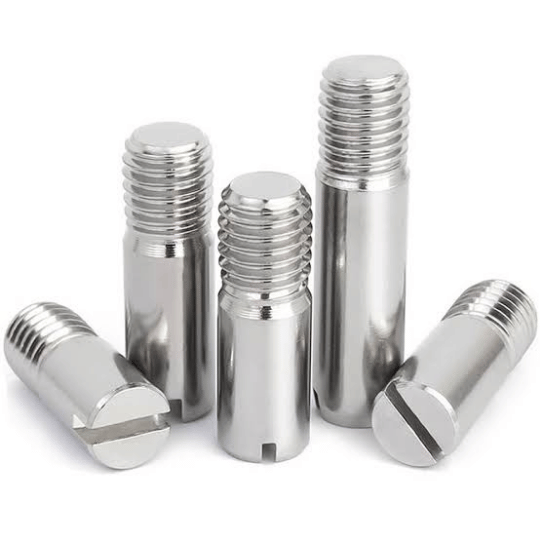

How Do Threaded Dowel Pins Work?
- 1. Positioning
The precision cylindrical section locates the mating components and maintains alignment.
- 2. Installation / Retention
The threaded section allows the pin to be installed or retained according to the assembly design.
- 3. Removal
The thread provides a controlled way to extract the pin during tooling maintenance or disassembly.
What Is the Thread Used For?

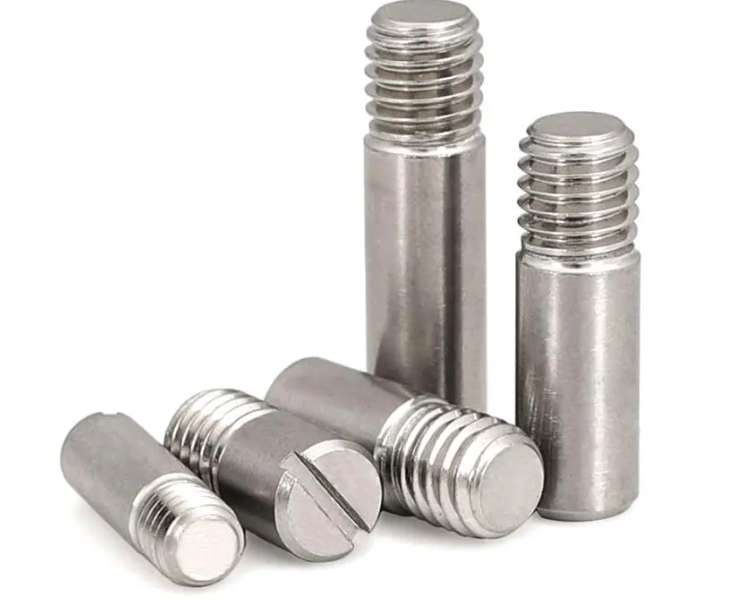

The threaded feature on a threaded dowel pin serves installation, retention, and service functions—not positioning.
| Thread Function | Purpose |
| Installation | Allows the pin to be installed using a threaded feature |
| Retention | Helps retain the pin according to the assembly design |
| Extraction | Provides a controlled way to remove the pin |
| Servicing | Simplifies removal during maintenance or disassembly |
The thread does not replace the locating fit. The locating diameter and mating hole determine positioning accuracy, while the thread provides an additional mechanical interface for installation, retention, or removal.

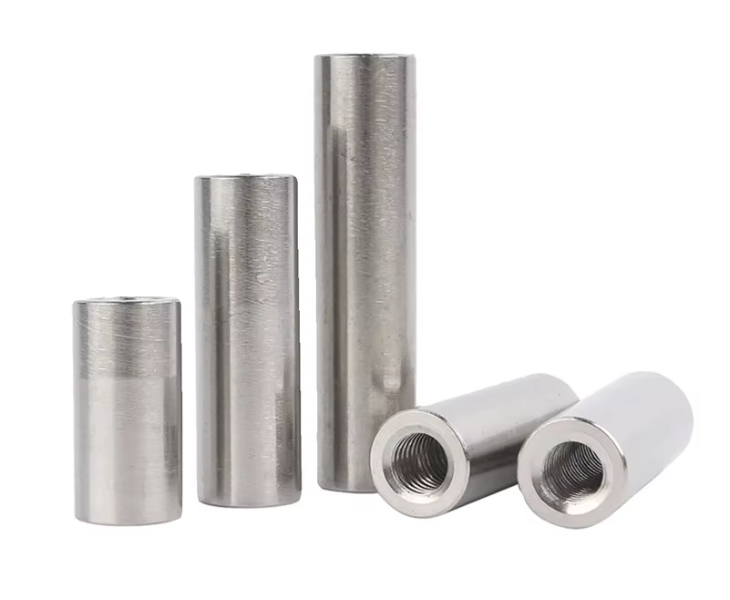

When to Use Threaded Dowel Pins
- Tooling that requires regular maintenance or disassembly
- Assemblies where a threaded installation or retention method is needed
- Pins installed in blind or difficult-to-access locations
- Frequently assembled, adjusted, or serviced tooling

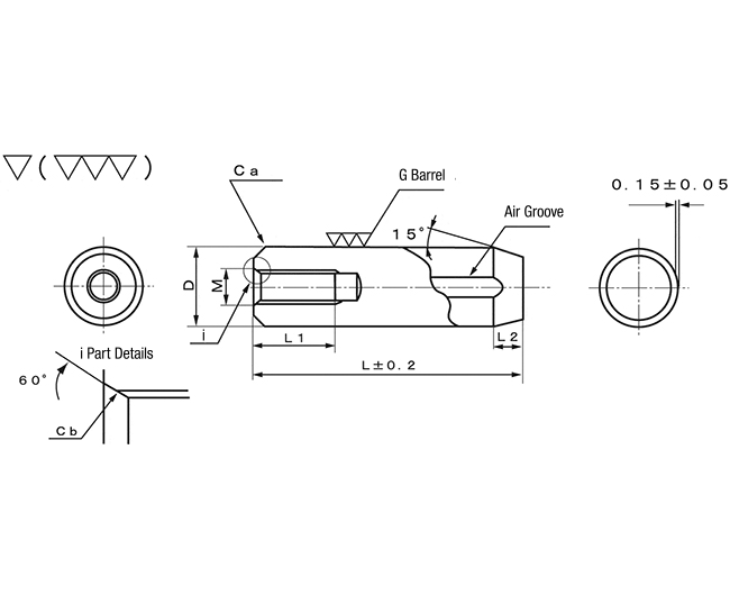

The Specifications for Threaded Dowel Pins
Threaded dowel pin dimensions may be specified in metric or inch systems. Applicable dimensional standards depend on the required pin configuration and customer specification.
| Parameter | Specification |
| Pin Diameter | Standard or custom |
| Overall Length | Standard or custom |
| Thread Size | Per specification |
| Thread Length | Per drawing |
| Locating Length | Per application |
| Tolerance | Drawing-defined |
| Material | Application-dependent |
| Hardness | Application-dependent |
| Surface Finish | Precision ground where specified |
| Configuration | Standard or custom |
Applications for the Threaded Dowel Pins
Threaded dowel pins are used where precision positioning and threaded installation, retention, or removal are both required—commonly in molds, dies, tooling, and industrial assemblies that need accurate alignment plus easier service access.
Used to align mold components where accurate locating and controlled installation/removal are required.
Used to locate die components where repeated assembly and maintenance require a threaded installation/removal feature.
Used in precision tooling where repeated assembly and disassembly require controlled installation and removal without affecting locating accuracy.
Used in industrial assemblies where precise alignment and threaded retention or extraction are both required.
- Threaded vs Plain Dowel Pins
- Threaded Dowel Pins vs Pull Dowel Pins
| Feature | Threaded Dowel Pin | Plain Dowel Pin |
| Positioning | Precision cylindrical surface | Precision cylindrical surface |
| Thread | Yes | No |
| Installation | Threaded feature or specified assembly method | Specified locating fit and assembly method |
| Removal | Thread-assisted extraction | May require dedicated removal method |
| Retention | Can support retention per design | Depends on fit and assembly |
| Best For | Assemblies needing threaded installation/removal | Conventional precision alignment |
| Feature | Threaded Dowel Pin | Pull Dowel Pin |
| Locating Function | Cylindrical locating surface | Cylindrical locating surface |
| Thread / Pull Feature | Threaded feature for installation, retention or removal | Pull feature primarily for extraction |
| Main Design Purpose | Installation/retention/servicing | Easy removal, especially from blind holes |
| Typical Use | Tooling requiring threaded access | Tooling requiring frequent or difficult extraction |
The Quality Control & Manufacturing Process
We select material based on the required strength, hardness, corrosion resistance, and application. Bars are cut to length and prepared for machining.
The pin body is turned to form the locating diameter, overall length, and end geometry. Grinding stock is left on critical surfaces for the next stages.
The threaded section is machined to the specified size, pitch, and length. Thread accuracy is controlled to match the installation, retention, or extraction method.
Vacuum quenching and tempering bring the pin to the required hardness while maintaining core toughness and minimizing distortion.
The locating diameter and other critical surfaces are ground to final tolerance and surface finish. This step determines the positioning fit with the mating hole.
Locating diameter, thread dimensions, overall length, and other specified tolerances are checked against the approved drawing.
A final check confirms the pin meets all drawing and order requirements before packing and shipment.
Installation, retention, and controlled removal. The thread is a service feature—positioning accuracy comes from the cylindrical locating surface.
No. Accuracy depends on the cylindrical locating surface and its fit with the mating hole. The thread affects installation and removal, not positioning precision.
Select the locating diameter according to the hole and required positioning accuracy. Select the thread size according to the installation, retention, or removal method and expected axial load.
When extraction from a blind hole is the primary requirement, pull dowel pins are designed specifically for easy removal where backside access is limited.
