Project Overview

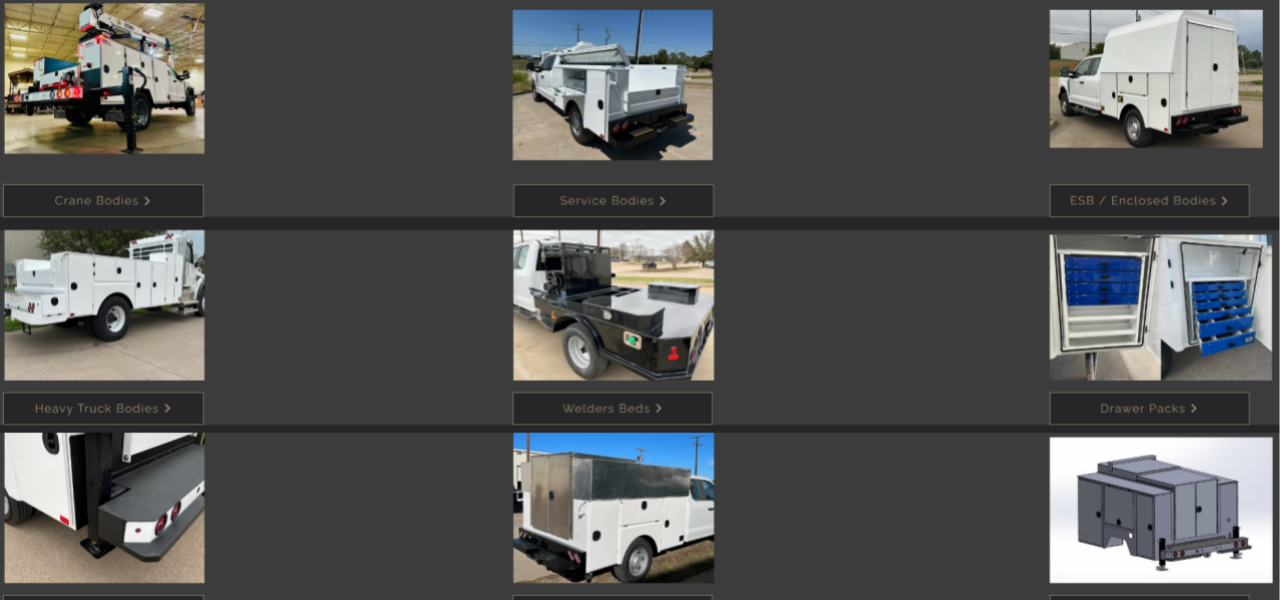

Customer Background

The customer is a sheet-metal fabrication and commercial-vehicle manufacturing company in the United States. The ordered die springs were used in tooling fixtures for heavy commercial vehicle body fabrication, where stable spring performance and reliable supply were required.

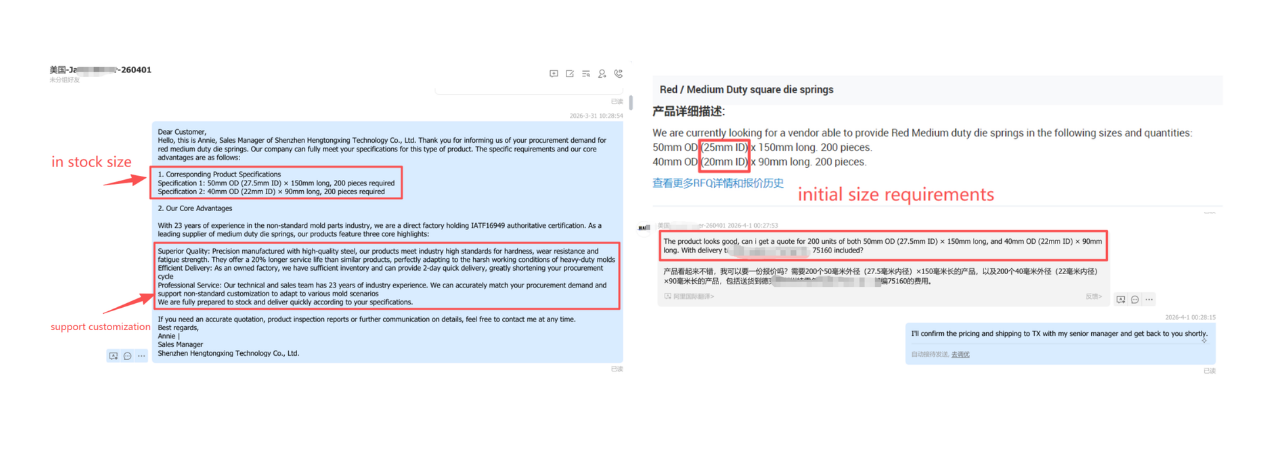

The Challenge: Optimizing a Non-Standard Die Spring Requirement

This project represents a typical application scenario in stamping die tooling, where spring performance directly affects production stability. The customer initially requested specific inner diameter dimensions that were not standard stock specifications. Producing these custom springs would require dedicated manufacturing arrangements, resulting in higher cost and longer delivery time.

HTX Engineering Solution

Standard Spring Optimization to Reduce Cost and Lead Time

After reviewing the customer’s requirements, HTX engineers identified that the requested outer diameter and length matched available standard die spring specifications. Instead of producing fully customized springs, HTX recommended two equivalent standard solutions:

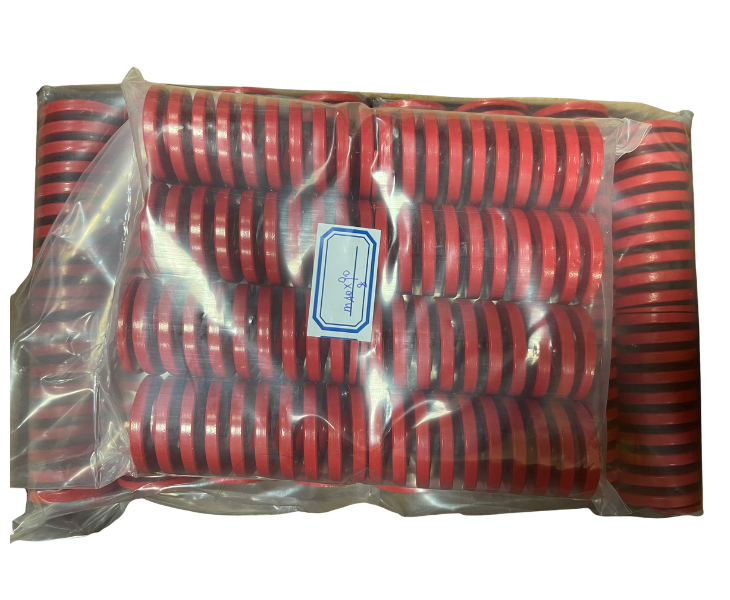

• 50mm OD × 27.5mm ID × 150mm Length
• 40mm OD × 22mm ID × 90mm Length

This solution eliminated additional customization costs while maintaining the required assembly dimensions and tooling performance.

Production Process and Quality Control

Raw Material Inspection

↓

Spring Coiling Forming

↓

Heat Treatment

(Quenching / Tempering / Stress Relieving)

↓

Red Surface Coating

↓

Dimension Inspection

↓

Hardness Testing

↓

Packaging

Manufacturing Challenges

1. Stable Mechanical Performance

Medium-duty die springs require accurate control of coiling and heat treatment parameters to maintain stable elastic performance and prevent fatigue failure during repeated compression.

2. Batch Dimension Consistency

For bulk production, HTX controlled outer diameter, inner diameter, and free length tolerance to ensure interchangeability of all springs within the same batch.

3. Coating Protection

The red coating adhesion was carefully inspected to ensure resistance against peeling and corrosion during repeated spring compression and long-distance transportation.

Inspection Process

• Outer Diameter
• Inner Diameter
• Free Length
• Hardness
• Spring Force
• Coating Adhesion

All springs passed dimensional, hardness, elastic performance, and coating inspection requirements before shipment.

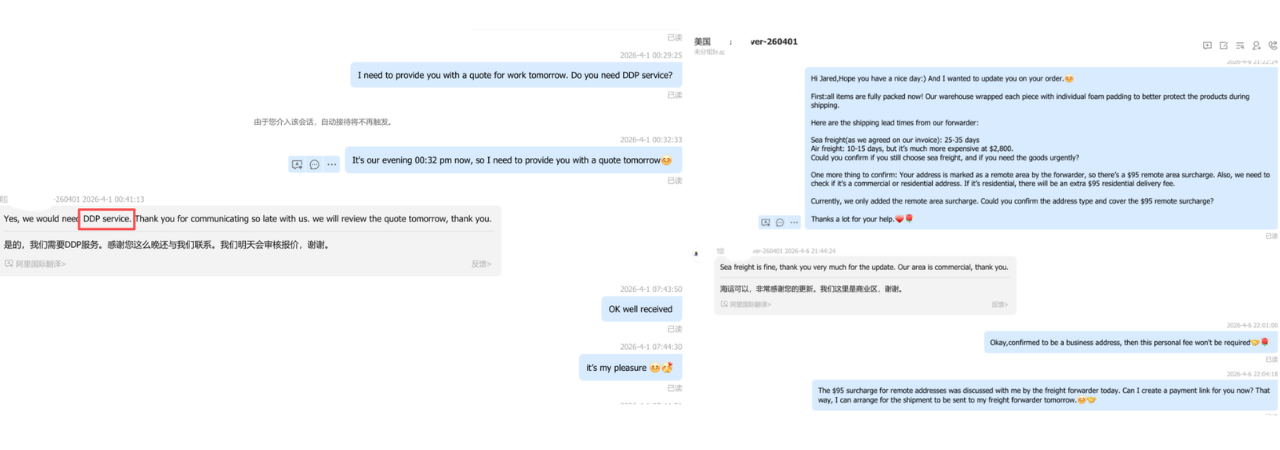

Reliable International Delivery to USA

HTX provided DDP door-to-door shipping service to Texas, USA, covering freight, customs clearance, and import duties.

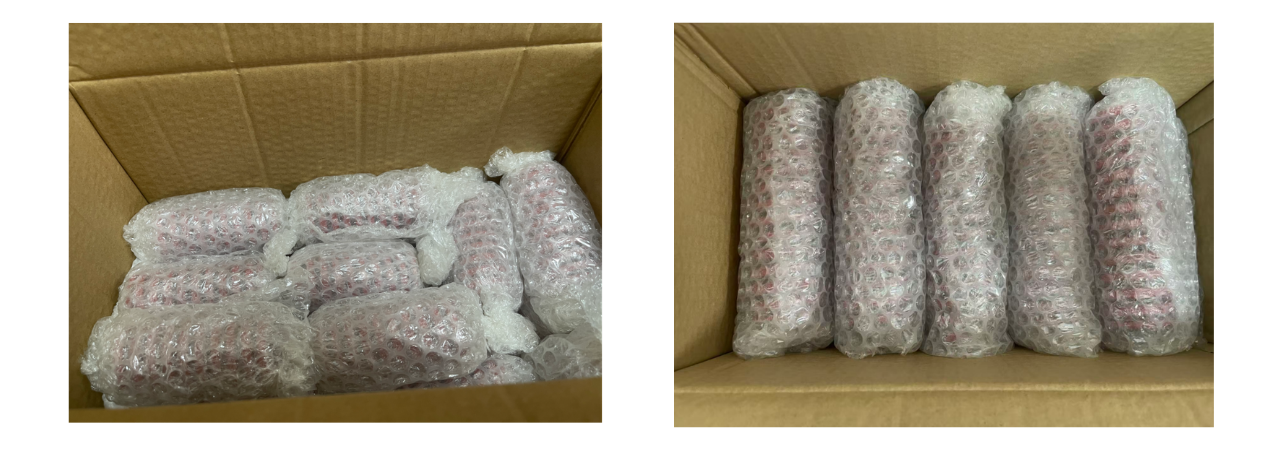

Each spring was wrapped with bubble protection to prevent coating damage and deformation. Reinforced cartons with shipping marks were used for safe long-distance ocean transportation.

Results Achieved

1、Reduced procurement cost: The customer initially needed non-standard inner diameter springs requiring custom moulding. We recommended equivalent stock springs with matching outer diameter and length, eliminating mould opening fees, lowering unit price and shortening lead time.

2、Controlled logistics expenditure: We verified delivery address type in advance to waive residential delivery surcharge, notified remote area freight surcharge upfront, and adopted official Alibaba payment channel, preventing unexpected hidden logistics costs.

3、Guaranteed supply timeliness: Ready stock cut manufacturing lead time. We tracked full sea & inland shipping progress proactively, ensuring stable delivery ensured the customer had spring stock for mould production and avoided production downtime.

4、Mitigated quality risks: Standard springs have stable heat treatment and dimensional tolerance; full factory inspection plus bubble wrap & carton packaging prevented paint chipping and deformation during long ocean transit, products can be used directly upon receipt with minimal rework.

5、Simplified cross-border sourcing: We handled production, payment, shipping, and last-mile delivery across the whole process, provided timely updates adapting to time zone differences, greatly saved the customer’s coordination workload for overseas purchasing.

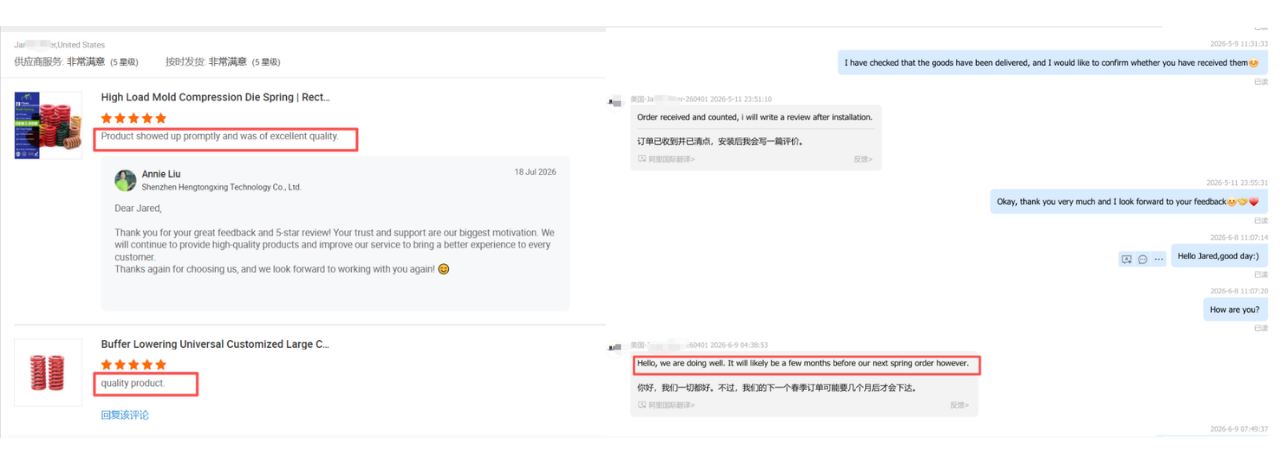

Customer Feedback

“Product showed up promptly and was of excellent quality.”

The customer expressed interest in placing future bulk spring orders after successful application.

“Hello, we are doing well. It will likely be a few months before our next spring order, however. Product showed up promptly and was of excellent quality. Quality product.”

“The customer will place bulk spring purchase orders in several months for spring production, showing stable long-term cooperation intention. The mature solutions, including standard spring replacement of custom parts, end-to-end US sea logistics and shockproof packaging verified in this project, can be referenced for developing other North American manufacturing clients.”

Engineering Lessons from This Project

1. Standard Solutions Can Replace Custom Parts

We adopted suitable standard stock springs to replace the customer’s custom non-standard design, cutting procurement cost and lead time while ensuring normal assembly performance.

2. Logistics Management Is Part of Manufacturing Service

We summarized the complete process of freight surcharge assessment and end-to-end logistics tracking for shipments to US commercial destinations, which can be reused for future orders.

3. Packaging Design Protects Product Performance

We verified that bubble wrap inner packing plus corrugated carton outer packing effectively protects spring coating from damage during long ocean shipping, forming standardized packaging rules for long spring parts. Fourth, we built a mature cross-border communication workflow adapted to the China-US time difference, covering quotation, fee notification, shipment update, and post-delivery follow-up for future overseas projects.

What did we learn from this project?

At the demand confirmation stage, check whether the customer’s spring dimensions are non-standard immediately after RFQ submission, and provide a comparison table of stock vs custom products on cost and lead time to shorten the client’s decision cycle.

Conduct logistics risk assessment earlier: verify the delivery address with the freight forwarder during initial quotation, list possible remote surcharges upfront to avoid unexpected extra charges after order confirmation, build a US regional freight reference sheet for future use.

Optimize packaging: add cardboard edge protectors on both ends of springs based on bubble wrap packing to prevent paint chipping; standardize container loading layout to cut unit shipping cost.

Make a fixed schedule for shipment status updates, and inform clients about common ocean shipping risks in advance to ease their concern over delivery time.

Collect on-site assembly feedback after delivery to enrich our spring selection database for future similar US orders.

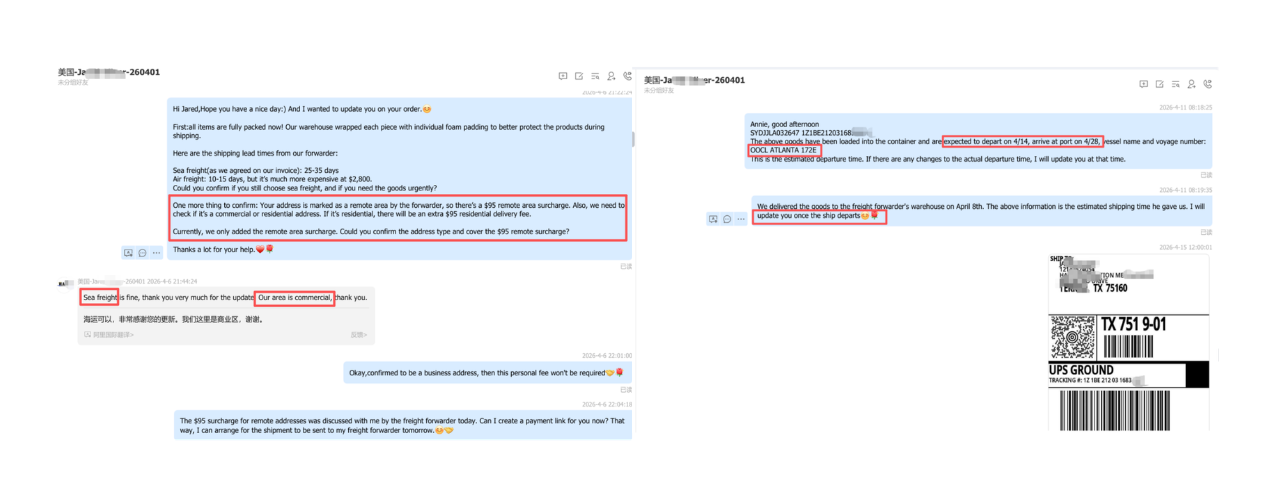

Why Choose HTX as Their Supplier?

1. Transparent & upfront charging without hidden costs

We inform clients of all extra logistics fees in advance to remove their concerns. After verifying Jared’s commercial factory address, we told him the residential delivery surcharge could be exempted to save him expense. When a USD 95 remote area surcharge arose, we clarified this fee before shipment rather than adding it unexpectedly later. An official Alibaba payment link was provided for safe, traceable corporate payment, and we delivered goods to the forwarder’s warehouse promptly once he finished payment as promised.

2. Proactive full-chain logistics tracking service

We take initiative to update shipment progress so Jared never needs to follow up on his own. We shared every key milestone, including handover to the warehouse, the schedule of vessel OOCL ATLANTA 172E, ocean transit updates, LA customs clearance status, UPS ground tracking number, and estimated delivery time. Tracking screenshots and timelines were sent continuously to keep him fully informed of the whole sea freight trip.

3. Thoughtful post-delivery follow-up to build long-term trust

We maintained polite communication after goods arrived. We confirmed receipt status right after delivery and requested his product feedback after installation. We also reached out one month after order completion to sustain contact. Satisfied with our service, Jared frankly mentioned he would place bulk spring orders in several months.

4. One-stop door-to-door shipping solution that outperforms competitors

HTX provides integrated door-to-door sea freight and full-cycle support, making us Jared’s top choice for long-term precision mold component procurement.

Need a Reliable Die Spring Solution for Your Stamping Tooling?

Whether you need standard die springs or customized spring solutions, HTX Precision provides material selection, precision manufacturing, quality inspection, and global delivery support for tooling applications.

Request Your Die Spring Quote
