What Are Yellow Die Springs?
Yellow die springs are classified as extra-light die springs, designed with a core focus on lower initial load, gentler rebound response, and high stroke controllability. It is important to note that an extra light load does not imply secondary.
They are ideal for protecting precision mold structures that are highly sensitive to impact and stress. These springs serve as a critical solution for applications requiring fine adjustment, positioning, and gentle cushioning.
You may consult the spring selection from HTX. Our professional engineer will provide you with a suitable selection and quotation.
The Solution of HTX Yellow Die Springs
The yellow die spring activates with extremely low initial load, making it ideal for high-precision assembly scenarios and supporting thin-walled sensitive structures. It delivers reliable, safe, flexible cushioning and constant force output within confined spaces for precision mechanisms.
Gentle initial pressure prevents impact on precision components during mold closure, safeguarding mold structures.
High spring effective stroke ratio enables longer controlled compression within confined spaces, enhancing stability.
Flexible pressure curves evenly disperse internal mold stresses, reducing fatigue and deformation risks.
Particularly suited for high-precision molding and thin-wall part production, providing controlled elastic support.
The Applications of Yellow Die Springs
When selecting springs for your precision mechanical structures, the yellow die spring offers an optimal choice with its moderate load capacity and high precision rebound performance. It is commonly used to achieve precise positioning and reset functions, providing reliable auxiliary return force in miniature slider systems.
Additionally, for applications requiring light load cushioning and vibration damping, the yellow die spring effectively absorbs minute vibrations and protects your critical components.

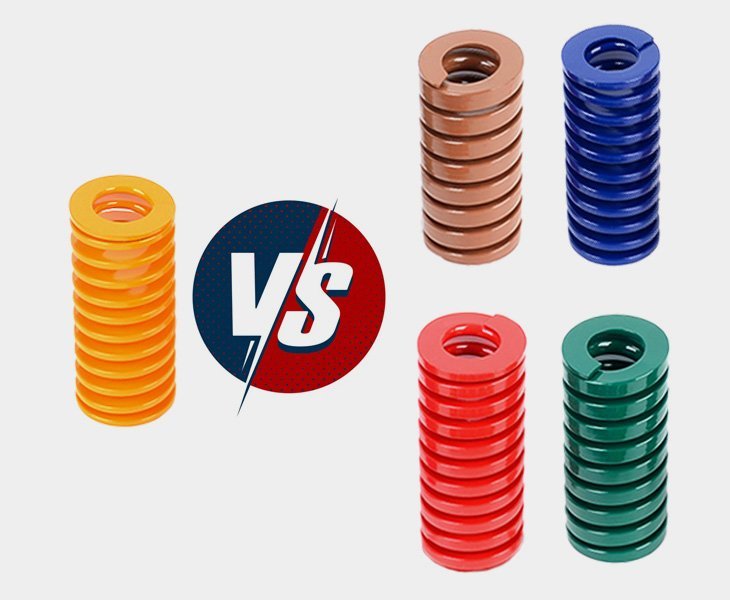

Yellow Die Springs vs Other Load Ratings
Yellow mold springs, with their low elastic force and gentle characteristics, are particularly suitable for molds handling extremely light loads and precision structures. They effectively prevent damage to your precision parts from initial impact, making them especially ideal for applications requiring a soft initial action.
Yellow die springs represent ultra-light loads, the lightest load category among the mold springs.
They are highly suitable in structures requiring flexible return or preventing ejection impact.
They are only suitable for auxiliary or non-load-bearing positions and are not recommended for any primary structural applications.
Because yellow die springs have low unit stiffness, requiring a larger stroke to achieve flexible rebound.
