What Is a Square Ejector Pins?
In the ejection system of injection molds, square ejector pins serve as critical components for specialized ejection requirements. Their increased contact area enables more uniform force distribution, effectively reducing issues such as part deformation, ejection marks, and scratches.
In contrast, square ejector pins offer the advantage of directional locking capability. Their square cross-section structure ensures directional stability and positioning accuracy during ejection, effectively preventing rotation or displacement. They are suitable for handling relatively complex product structures, restricted ejection directions, or situations involving lateral forces.
Send your drawing for a custom solution.
Square Ejector Pin Design and Custom Options

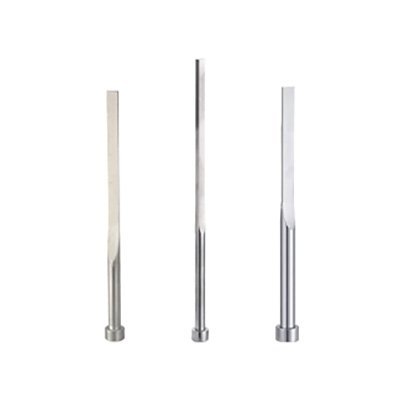

HTX has standard square ejector pins in stock, and we can also custom non-standard square ejector pins for special requests.
These pins feature a standard square cross-section design to accommodate the rotation of the ejector pins during routine ejection operations.

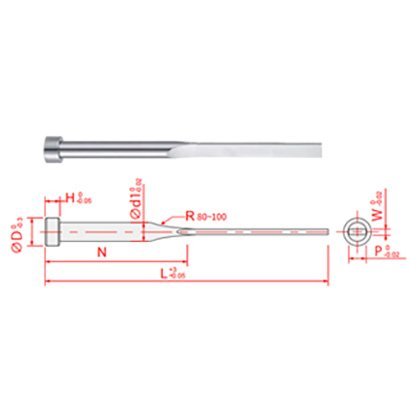

Offering non-standard side lengths, total lengths, and other structural customization, including machining steps and chamfer.

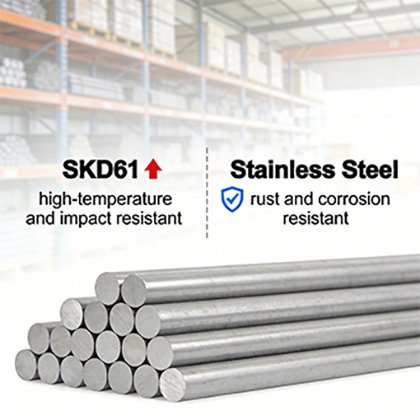

SKD61 (high-temperature and impact resistant) and stainless steel (rust and corrosion resistant) can be choose for different demand.
The Applications of The Square Ejector Pins
Square ejector pins effectively prevent rotation and offer greater stability compared to round pins. They are commonly used in molds with specific requirements for ejection precision, stability, and anti-rotation properties.
For mold designs where ejector pins must remain oriented and cannot withstand circumferential displacement, ensuring absolute positional stability during every mold closing and ejection cycle.
Suitable for plastic components subjected to uneven forces during ejection. The square cross-section design provides resistance to bending and eccentric loads.
Ensures consistent ejection across all cavities in high-precision or multi-cavity molds, preventing dimensional deviations caused by pin rotation.
In injection molds requiring strict control to prevent product deformation, square ejector pins deliver stable and uniform ejection performance.
The Advantage of The Square Ejector Pins

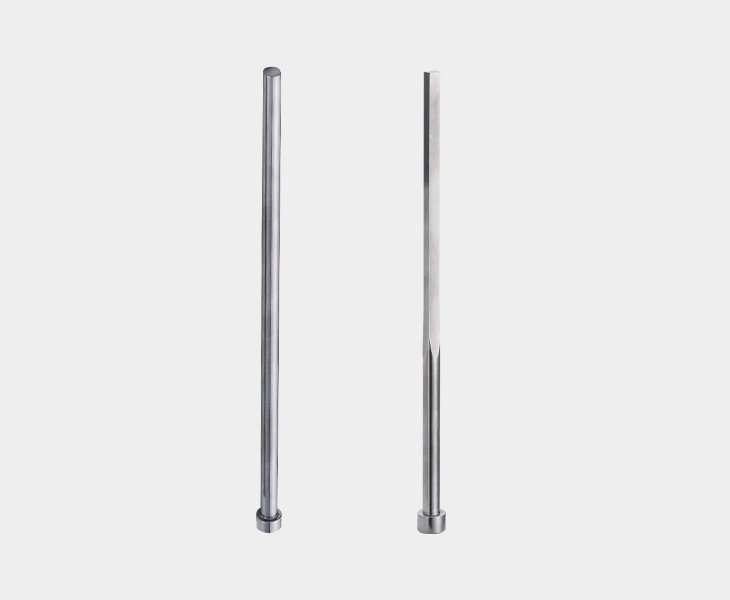

The unique square structure of square ejector pins offers superior performance compared to round designs, effectively preventing rotation and ensuring consistent ejection position and direction. This makes them particularly suitable for scenarios involving uneven force distribution and side ejection, maintaining synchronized ejection in multi-cavity molds.
Molds requiring side ejection during part ejection, as well as molds with high demands for precision and repeatability.
Yes, we support metric ejector pin series and can produce both metric and imperial sizes.
We enhance the wear resistance of our products by nitriding the ejector pins. Utilizing precision grinding processes reduces friction during the ejection process, thereby extending the service life.
