What Is a Guide Bushing?
Guide bushings are precision components used together with guide pins to ensure accurate alignment and smooth movement in dies and molds.
Their main function is to actively withstand wear, maintain guiding accuracy over the long term, and effectively protect the mold base from direct friction. By using hardened materials and precision machining, they significantly improve the tool life of the mold, improve production stability, and are a crucial component in ensuring the long-term efficient operation of the mold.
If you need technical support for the bushings, please feel free to contact us.
Types of Guide Bushings by Application
To meet the precise guiding requirements of different mold structures and working conditions, we provide you with four main guide bushings.

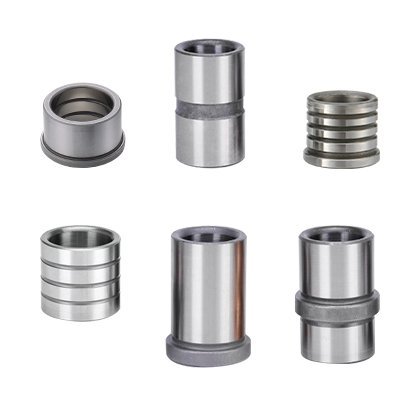

Standard Guide BushingsFeaturing a one-piece design and operating via sliding friction, these bushings are suitable for general mold guiding applications, offering good wear resistance and cost-effectiveness.

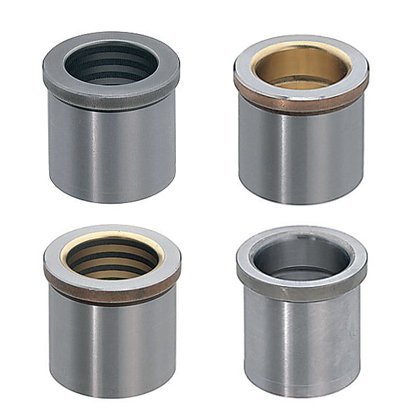

Stripper Guide BushingsSpecifically designed for stripper plate guidance, these bushings provide enhanced stability during the stripping process and are commonly found in stamping dies and multi-stage progressive dies.

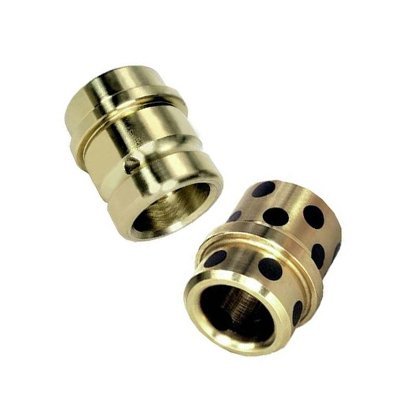

Guided Ejector BushingsUsed for precise guidance in ejection systems, these bushings effectively improve the centering and smooth movement of the ejector pins, ensuring a stable and reliable demolding process.
Why Choose HTX Precision Guide Bushings
With over twenty years of experience in the mold parts manufacturing field, HTX has consistently maintained a stable quality control system to ensure the reliable performance of every guide bushing.
Strict tolerance control ensures precise fit with guide pins for stable guidance.
Special material hardening treatment reduces wear and effectively extends mold life.
Maintains smooth operation even under high-speed and high-load conditions.
Universal design allows for direct compatibility with conventional guide pins.
Custom Guide Bushings Available in HTX
HTX offers custom guide bushing services, manufacturing bushings according to your specific drawings. We support customization of inner diameter, length, and special dimensions, and employ strict tolerance control to ensure precise fit for various mold structures and performance requirements, delivering high-precision, perfectly matched solutions.
Send drawings or requirements to us fora free quotation and lead time.

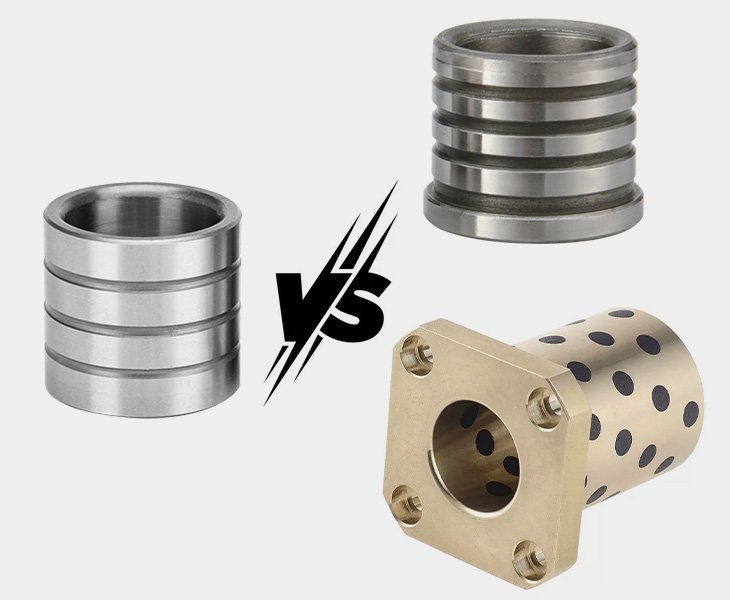

How to Choose the Right Guide Bushing?
When selecting guide bushings, you need to consider the following factors: the diameter and tolerance of the guide pins, the actual load on the mold, the operating speed of the mold, the mold’s cycle life, and the type of mold (injection mold or stamping die).
Additionally, ensure overall compatibility with the guide pins to guarantee system compatibility and thus ensure the accuracy and service life of the mold.
We also have some standard-size guide bushings in stock; you may contact us for a quotation.

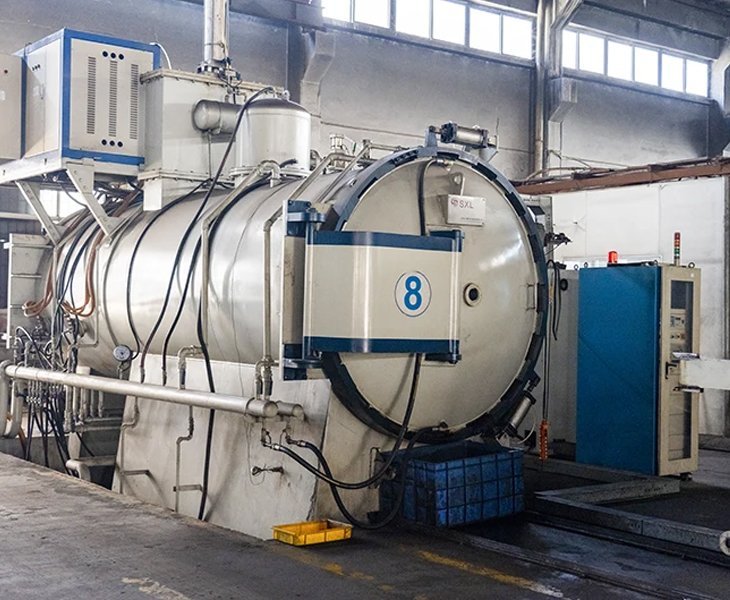

Material & Heat Treatment of HTX Guide Bushing
In designing and manufacturing guide bushings, we select high-carbon chromium bearing steel SUJ2 or high wear-resistant alloy tool steel D2. Through CNC turning, specialized heat treatment processes enhance surface hardness and wear resistance, and precision grinding strictly controls inner and outer diameter tolerances and surface finish, ensuring that every guide bushing provides your mold with long-lasting and stable precision guiding performance.
It guides the guide pin and protects the mold from wear.
When you need to use them in high-speed or high-precision molds.
Yes, they are designed as wear parts and can be replaced.
Yes, proper lubrication can improve service life and stability.
