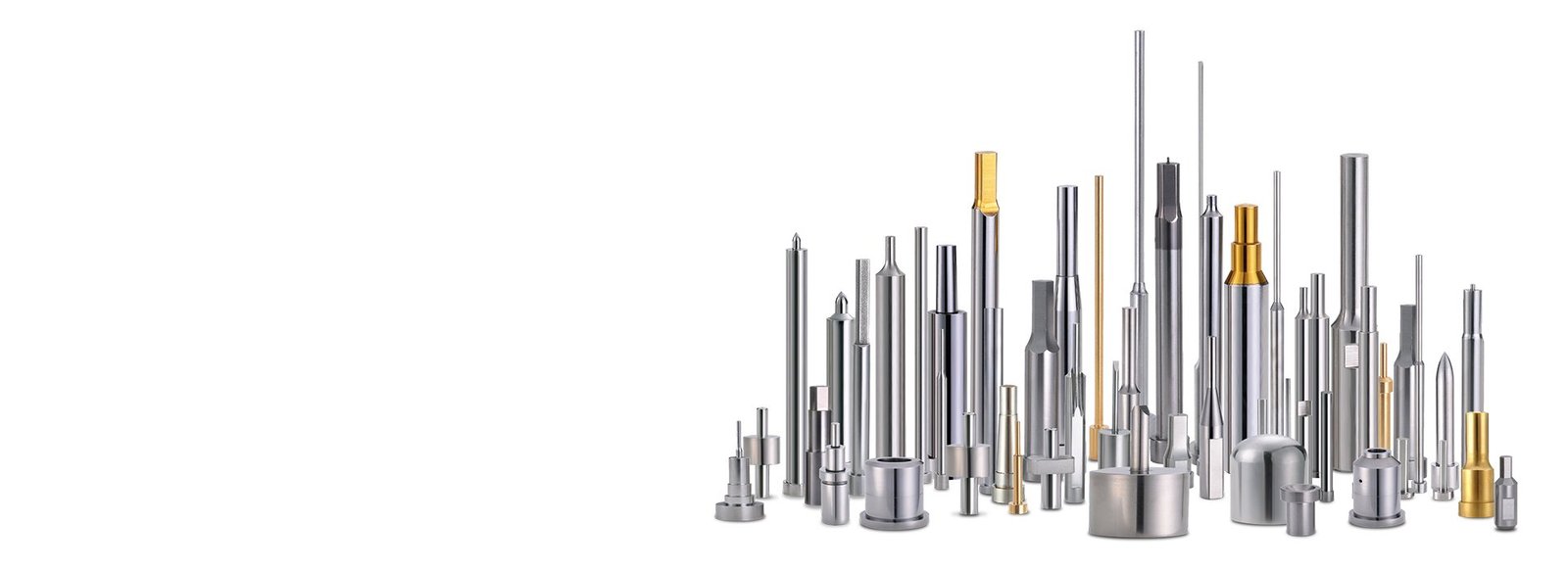

Your Trusted Carbide Punch Manufacturer
If you are looking for a professional carbide punch manufacturer in Shenzhen, China, HTX is your best choice. We were founded in 2002, and have over 8000 square meters. We are equipped with 20 slow wire-cut EDM machines, 12 CNC machines, 15 CNC lathes, and 5 surface grinders, so that we can reach the most precision of ±0.002mm and daily output reaches 12,000 units.
HTX has an engineering team where each member possesses over 10 years of experience in this field. We will handle all the details and meet the high-quality standards in your CAD/CAM drawing, regardless of shape or size, imperial or metric.
We have a professional sales team of over 10+ members. You can visit our factory if you come to China, and if you can not go to our factory, you can also visit our factory via video; we will provide a professional team to follow up.
Various Of The Carbide Punch Categories

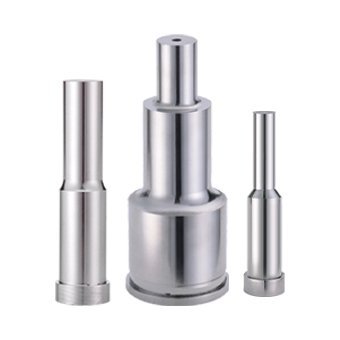

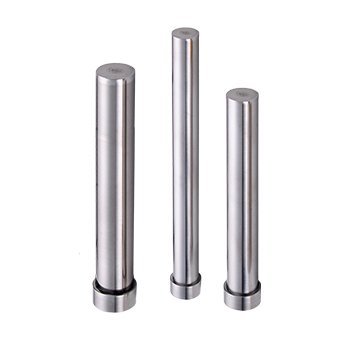

Primarily used for punching round holes, typically available from stock.
Primarily used for punching round holes, typically available from stock.

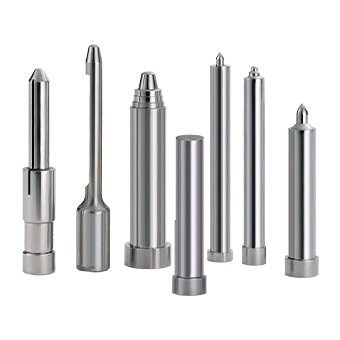

Based on the provided drawings, materials, and process requirements.
Why Choose Our Carbide Punches?

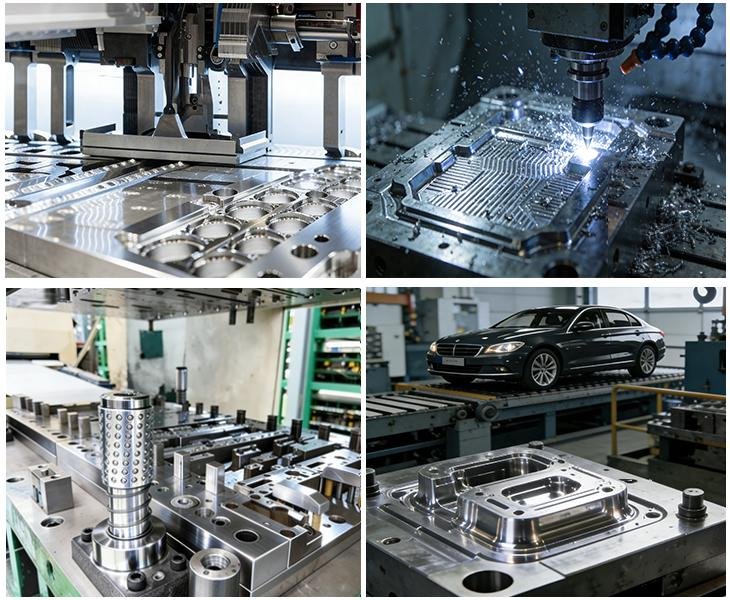

Application Areas for The Carbide Punch
In the precision stamping industry, continuous stamping operations demand high precision. Using carbide punches ensures dimensional accuracy while extending service life.
In the automotive and automotive electronics industries, for mass-produced products with high consistency requirements, using carbide punches can ensure product quality while reducing the frequency of punch pin replacement.

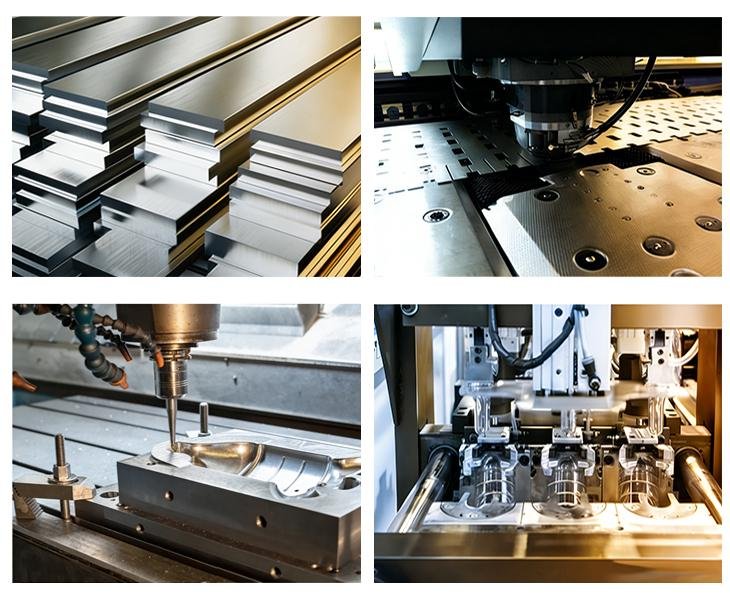

Application Scenarios for The Carbide Punch
For materials with extremely high hardness in processed products, the advantages of carbide punches become even more pronounced.
For applications requiring rapid and repetitive stamping, it proves exceptionally useful. While ensuring product precision, it reduces the frequency of punch replacement, thereby significantly boosting production efficiency.
For creating dies and molds, the carbide punch is the most widely used.

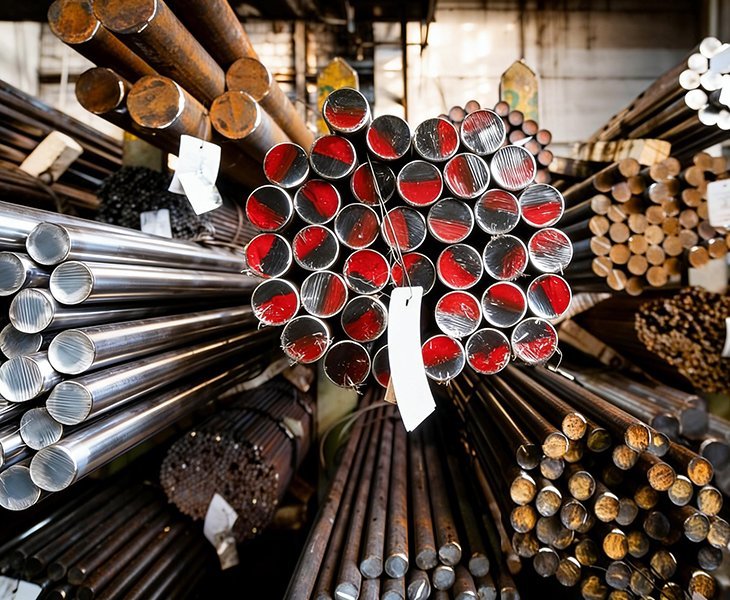

Materials You Can Choose for Your Carbide Punch
All the materials are the highest quality tool steels supplied by the world’s finest suppliers. You may ask us for the latest certificate versions of the raw material. For the hot stamping dies, we will use SKD61, H13, 8407, etc. For the cold forming die, we always use SKD11, SKH9, SKH51, ASP23, ASP60, and so on. Tungsten carbide, A2, D2, M2, and many of the other materials you can choose according to your request.

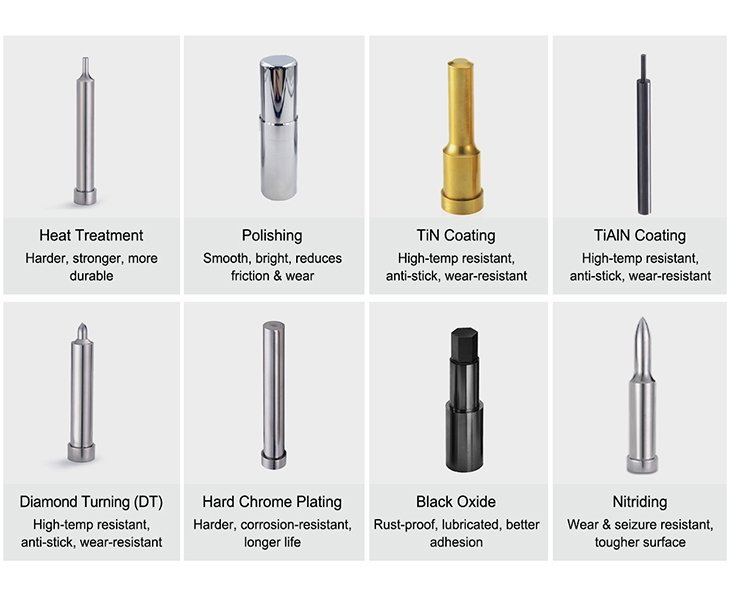

Surface Treatment for Carbide Punch You Can Choose
For the surface treatment, according to your different requests, we can provide all kinds of surface treatments. Like heated treatment for harder and stronger, polishing for a smooth and bright surface. TiN Coating and TiAiN Coating for high-temp resistant, diamond turning for increasing hardness, Black oxide for better adhesion, Nitriding for Wear & seizure resistant, and tougher surface.
Micro punch diameter: Ø0.1 mm – Ø0.5 mm
Standard punch diameter: Ø0.5 mm – Ø0.6 mm
We can customize the diameter from Ø0.1mm to Ø30 mm.
Compared to standard punch pins, carbide punches deliver greater stability during small-diameter and continuous punching operations. They reduce frequent breakage and downtime, ultimately saving costs. However, this benefit hinges on selecting the right punch structure and shape.
For the high-quality carbide punches, it is usually customized, so you just need to provide the drawings, the material you want, and then we can customize it as you want with a competitive factory-direct price. After getting your request, quotes are typically provided within 2 hours. For inquiries received outside business hours, responses are generally provided within 12 hours. We ensure timely delivery schedules and 100% quality inspection before shipment.
The right carbide punch can boost production efficiency and extend service life, provided its shape design and suitable material are properly determined. This requires a team of experienced designers to offer professional guidance. Upon receiving your drawings, if you can also provide the product material or details of any issues encountered during use, HTX’s team of designers with over 10 years of experience will tailor constructive suggestions to your specific situation.
Yes, we can customize the carbide punch as yours. You can provide the exact drawing for them. If you do not have the drawing, please just carry your real sample to us, then we can copy all the measurements, if you have more demands on the pin, our experienced engineer will also provide suggestions.
HTX has over 100 imported machines; we have both ground and EDM machines, including slow-speed wire cutting and medium-speed wire cutting. We will choose the suitable process according to the different requests, perfectly tailored to your needs.
Before manufacturing, we will send drawings for final confirmation. We conduct 100% quality inspection before shipment, achieving a pass rate of 99.8%. Should any quality issues arise due to non-human factors, we guarantee 100% rework.
We will run the tolerance according to the drawing you provide. We can reach +/-0.002 for the tolerance, but the price will be different with the tolerance; it will be expensive for a tight tolerance.
